KRYTAR announces new dual directional coupler with 10 dB coupling over 10 to 46 GHz frequency range

KRYTAR announces new dual directional coupler with 10 dB coupling over 10 to 46 GHz frequency range

November 1, 2019

KRYTAR, Inc., a leader in the design and production of ultra-broadband microwave components and test equipment announces the continued expansion of its line of dual directional couplers with the addition of a new model offering 10 dB of Coupling over the broadband frequency range of 10 to 46 GHz, in a single, compact and lightweight package.

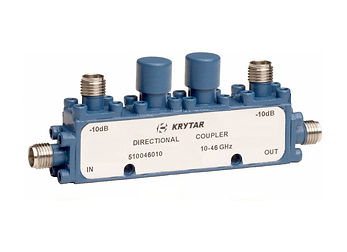

KRYTAR’s new dual directional coupler expands the family of superior performance products offering ultra-broadband coverage in compact packages. Model 510046010 is a multi-purpose, stripline design that exhibits excellent coupling over the 10 to 46 GHz frequency band. This new coupler is uniquely designed for systems applications where external leveling, precise monitoring, signal mixing or swept transmission and reflection measurements are required. The coupler provides simple solutions for many applications covering microwave frequency bands from X through Ka-Band including warfare (EW) systems and commercial wireless, SATCOM, radar, signal monitoring and measurement, antenna beam forming, and EMC testing environments. The compact size, makes KRYTAR dual directional couplers ideal solutions in many space-restricted applications.


KRYTAR’s Model 510046010 offers superior performance ratings including Nominal Coupling (with respect to output) of 10 dB, ±1.8 dB, and Frequency Sensitivity of ±1.0 dB. The dual-directional coupler exhibits Insertion Loss (including coupled power) of less than 2.8 dB, Directivity of greater than 10 dB, Maximum VSWR (any port) is 1.80. Input Power Rating is 20 W average and 3 kW peak. The directional coupler comes with industry-standard 2.4-mm Female Connectors. The compact package measures just 2.24 inches (L) x 0.40 inches (W) x 0.62 inches (H), and weighs just 2.0 ounces. Operating temperature is -54° to 85° C. The dual directional coupler can also be manufactured to meet ridged military specifications.
